Linux Kernel Exploits: How Attackers Gain Root Access and How To Defend Against It
Learn about Linux kernel threats, including buffer overflows and use-after-free vulnerabilities, and implement effective defense strategies.
6 Min Read
Alamy Stock Photo
The Linux kernel is a critical component of infrastructure systems worldwide and is known for its stability and security. At the same time, the kernel’s complexity introduces vulnerabilities that attackers can exploit.
The Linux Kernel: Foundation of Security
The Linux kernel, the core component of the operating system, manages hardware resources and ensures a secure environment for userland applications. As an open-source, globally collaborative project, the Linux kernel drives innovation through collective effort. However, vulnerabilities do occasionally find their way into the kernel’s codebase.
Types of Kernel Exploits
Several known exploits can target the Linux kernel.
Buffer overflow attacks and memory corruption
A buffer overflow occurs when a program writes more data to a buffer than it can hold, causing unintended behavior that attackers can exploit to execute arbitrary code. In a real-world environment, buffer overflow attacks are often much more complex, involving obfuscation, defense bypassing, and precision targeting.
Buffer overflow and memory corruption vulnerabilities commonly are executed in C++ due to its ability to manage memory at a low level.
Figure 1. Here is an example of a vulnerable piece of code.
In the vulnerable code block above, we can see the following:
buffer is a character array with a fixed size of 10 bytes.
strcopy() does not check the size of the destination buffer, so if the input exceeds 10 bytes, it can overwrite adjacent memory.
An attacker could provide a long string, causing memory corruption and potentially enabling arbitrary code execution.
How To Prevent Buffer Overflow Attacks:
Bounds checking: Use functions that limit the amount of data copied into the buffer, like strncpy() instead of strcopy().
The C++ standard library: Instead of raw arrays, use safer alternatives like std::string or std::vector.
Compiler mitigations: Compiler options like stack canaries, Address Space Layout Randomizations (ASLR), and non-executable stack can make exploitation more difficult.
Use-after-free vulnerabilities
A use-after-free vulnerability occurs when a running process continues to use memory space after it has been freed, allowing attackers to manipulate the free memory to gain control over the system. This happens when a program uses a pointer to an already freed memory chunk. Such vulnerabilities are particularly dangerous in low-level systems like the Linux kernel, where secure memory management is vital in maintaining the integrity and security of the operating system.
If an attacker can control the amount and type of data placed into the freed memory, they can manipulate the kernels’ execution flow, potentially escalating privileges and executing arbitrary code.
How use-after-free vulnerabilities occur:
A kernel object, such as a data structure, is allocated and later freed.
The pointer to that object remains accessible after the memory is released.
The kernel continues to access the stale pointer, leading to unintended behavior.
A prominent example of a use-after-free vulnerability in the Linux kernel is CVE-2016-0728, which affected the keyring subsystem.
Use-after-free vulnerabilities are classified under CWE-416 in the Common Weakness Enumeration (CWE) system.
Source: cwe.mitre.org

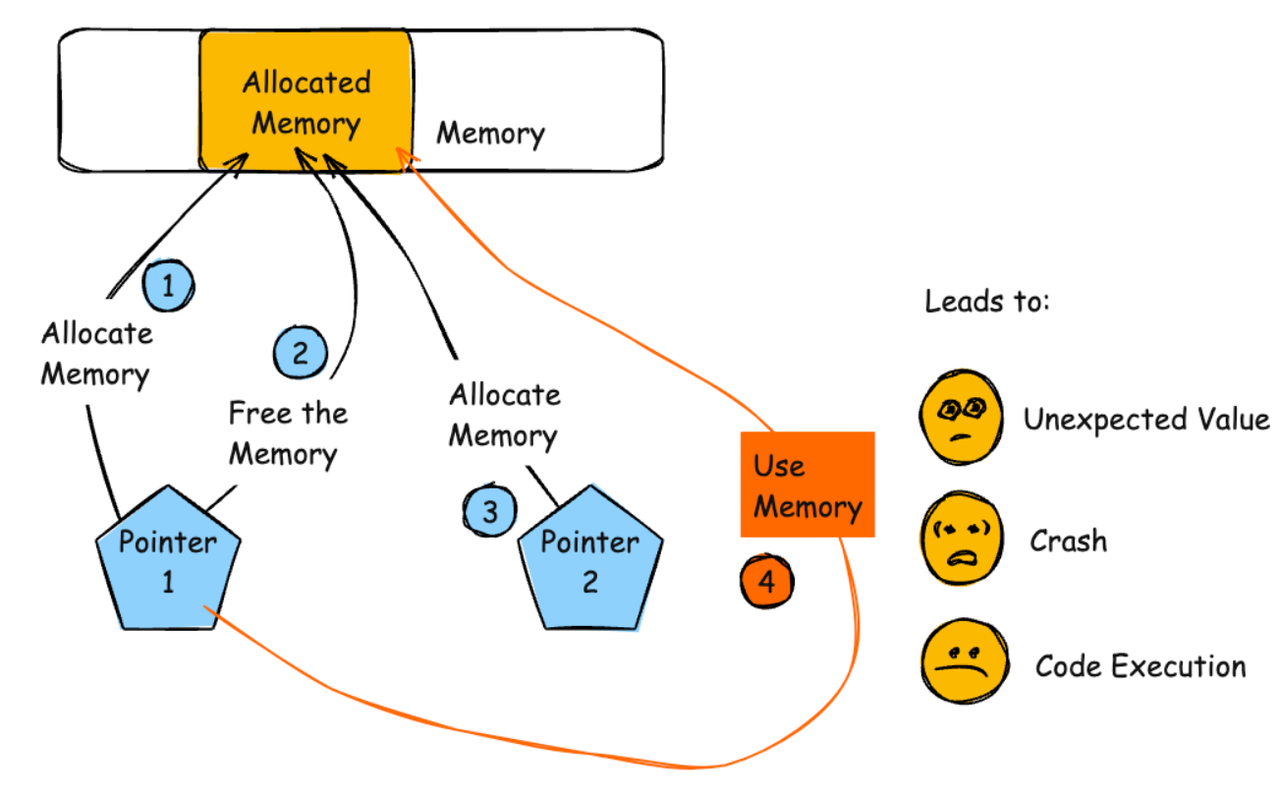

Figure 2. Here is a diagram of the use-after-free vulnerability CWE-416.
Kernel module vulnerabilities
Third-party kernel land modules and drivers can introduce vulnerabilities if they are improperly maintained or updated. Some examples include:
Null pointer dereference: This happens when a kernel module tries to use a pointer set to NULL, indicating no valid memory. While in userland, this would cause a segmentation fault, it can lead to a crash or worse in the kernel. Attackers may exploit this flaw to execute arbitrary code.
Race conditions: In kernel modules, rare conditions arise when multiple threads or processes access shared resources concurrently without proper synchronization, potentially allowing attackers to corrupt data or escalate privileges.
Inadequate input validation: Kernel modules often interact with userland input through system calls. If a module doesn’t correctly validate this input, attackers could pass malicious input into the kernel.
Code injection and malicious modules: Attackers may directly inject malicious code into a kernel module. Once loaded, the compromised module could lead to a system-wide compromise.
Symbol and memory leaks: Kernel modules may incorrectly handle memory allocations or symbols (functions and variables) that should be used only in the kernel space. When these don’t get cleaned up properly, it can lead to memory leaks and the exposure of critical kernel information.
A notable example of kernel module exploitation is CVE-2013-6282, a privilege escalation vulnerability in the Android Linux kernel. The flaw allowed unauthorized access to kernel memory, enabling arbitrary code execution and privilege escalation. Attackers exploited the vulnerability by sending specially crafted input to a device driver module, ultimately gaining root access on Android devices.
Anatomy of a Kernel Exploit
To understand how attackers gain root-level access to the kernel, we must break down the typical steps involved in a kernel exploit. These steps include:
1. Discover a vulnerability
Attackers identify vulnerabilities by analyzing codebases. They also use fuzzing techniques (injecting invalid or malformed inputs into the system) and review security patches to find undisclosed flaws.
2. Craft the exploit
After finding a vulnerability, attackers create or modify exploit code to target it. The aim is to execute arbitrary commands or inject malicious code directly into the kernel.
3. Escalate privileges
Exploits aim to elevate privileges, allowing attackers to gain root access. Once attackers achieve root access, they can perform administrator-level actions, such as installing malware, altering system configurations, and accessing sensitive data.
4. Avoid detection and maintain access
After gaining control, attackers attempt to confuse investigators and hinder incident response operations by altering or deleting logs and other evidence of their presence.
Defending Against Kernel Exploits
Effective defense against kernel exploits requires a multi-faceted approach. Here are the main strategies.
1. Patch management
Regularly apply security patches and updates to the kernel and all software packages to mitigate vulnerabilities as they get discovered.
2. Follow security best practices
Implement best practices, including:
Least privileged principle: Always ensure that users and processes have minimal access to perform their tasks.
Privileged access workstations (PAW): Use dedicated workstations for sensitive tasks like administrative duties to prevent unauthorized access.
3. Kernel hardening
Use security-focused kernel configurations and tools, such as mandatory access control (MAC) systems, to enable stricter access controls and protect against common exploit techniques.
4. Monitoring and logging
Set up logging and log retention strategies. Use Security Incident and Event Management (SIEM) and Extended Detection and Response (XDR) tools to continuously monitor the system for threats and conduct proactive threat hunting.
5. Regular audits and assessments
Conduct periodic security audits of both userland and kernel-space applications. Regular assessments help identify and remediate vulnerabilities before they can become exploited.
6. User education
Train users and system administrators on the risks associated with kernel exploits and reinforce the importance of following secure best practices.
What Is Ahead for Linux Kernel Security
As the Linux kernel evolves, so do attackers’ tactics, techniques, and procedures. Areas of future advancement in kernel security include:
Formal verification: Using mathematical proofs to verify kernel code and help prevent vulnerabilities during development.
Machine learning for anomaly detection: The application of machine learning algorithms to detect patterns that indicate malicious activity.
Main Takeaway
Understanding Linux kernel vulnerabilities and exploits is vital for protecting systems against threats. To ensure security, stay informed about the latest best practices, remain vigilant, and use advanced tools to mitigate risks.
Additional Resources and Links
The Linux Kernel Documentation: https://docs.kernel.org/
The Linux Kernel Archives: https://www.kernel.org/
CVE-2016-0728: https://nvd.nist.gov/vuln/detail/cve-2016-0728
CVE-2013-6282: https://nvd.nist.gov/vuln/detail/CVE-2013-6282
CWE-416 for Use-After Free Vulnerability: https://cwe.mitre.org/data/definitions/416.html
IT Pro Linux Resources
Check out my ITPro Today contributor page for links to my other Linux articles.
Disclaimer
This article references open-source code repositories and gists available on GitHub. The author would like to emphasize the following points:
Use of the provided code is entirely at your own risk and responsibility.
This code intends to assist security professionals engaged in professional red team operations and security research.
This code is free and open source.
